Single Family Home - 1929 ft² - 2 Bedrooms Bungalow

Single Family Home - 1929 ft² - 2 Bedrooms Bungalow

Name: Single Family Home - 1929 ft² - 2 Bedrooms Bungalow
Brand: Innovative Living Design
SKU: Model No 3
Price: 74541.16 CAD
Availability: InStock

$74,541.16 CAD

Living Area 1545 ft²

1545 ft² 1929 ft²

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

Introduction:

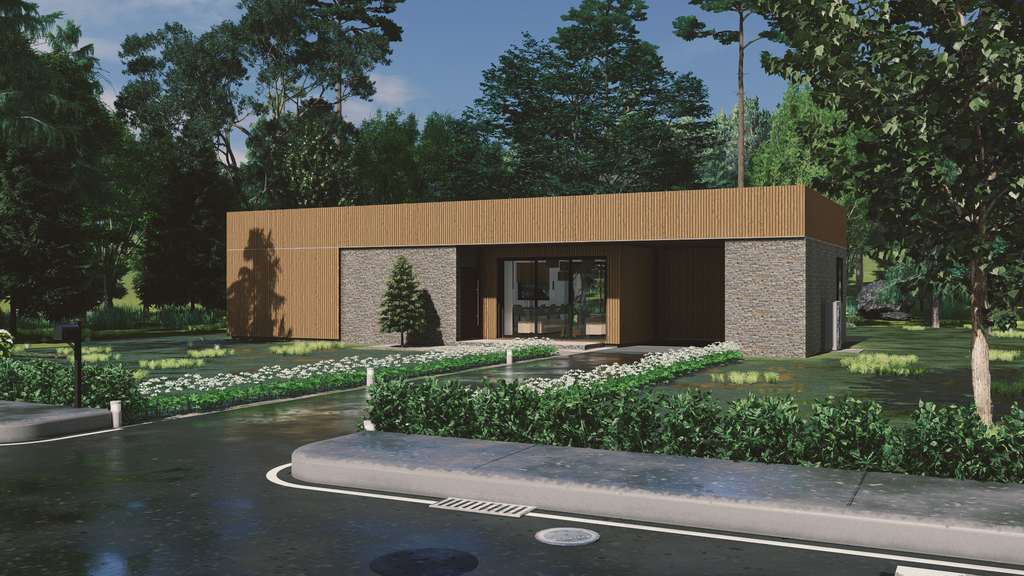

Eelegant and modern Flat Roof bangalow, made from light gauge steel frame (LGSF). This design is Net Zero Ready for future solar panels installation

Specifications

Total Surface area (excluding architectural finishes) = 1929 ft².
Total Indoor Living Space = 1545 ft² or 1929 ft²
Total Roofed Car Parking & Entrance = 384 ft².
Height (between slab and bottom of roof rafters = 9 ft.
Roof Tilt Angle: Flat Roof
Building has to be installed on a slab on grade or a reinforced concrete wall.
Seismic Load as per Canadian Building Code 2015
Wind Load as per Canadian Building Code 2015 (Location the city of Montreal - Provicne of Quebec) - Please contact us for other Locations in Canada or the USA.
Snow Load as per Canadian Building Code 2015 (Location the city of Montreal - Provicne of Quebec) - Please contact us for other Locations in Canada or the USA.
Dead Load on Roof and Wall is distributed on Beams (15 PSF).
Roof Live Load is 21 PSF = 1 KPa.

Price Analysis

Buiding Price =38.64 CAD$/Ft² (415.79 CAD$/m²).

Required Quantity of Galvanized Steel = 615,118 Lb (84.33 Lb of Steel /m² of Usable Space) or (7.84 Lb/Ft² of Usable Space).

Technical Documents

This product is not eligible for either return or refund. Before manufacturing, we issue execution drawings which require prior approval by either the client or any of his representatives (Architect, Engineer, Project Manager, etc...).
Our price includes structural load analysis and optimization. We use Strap software, which supports Canadian and US buildings code. Shown Price is calculated using the assumptions (for snow, wind, dead, Live and Seismic Loads) listed in the product page. For locations where these assumptions are not applicable, we recommend you get in touch with our design team. We do optimize every design for its location and applicable state/province special code requirements. Strap Software Load report can be sent (upon client’s request) to the project’s structural engineer for approval).
Architectural detailing is done with Vertex BD software, which integrates all architectural requirements of the project. For special and custom designs, we require architectural plans in Revit or IFC format. Once all project architectural and structural requirements for LGSF have been finalized and approved by the client and/or his representatives, we proceed with the manufacturing and pre-assembly process.
All Panelized Walls and/roof rafters are subject to strict quality control procedure before shipping to the job site. Shown price is for light gauge steel frame (LGSF) only. Price Excludes shipping to site, Doors, Windows, Skylights or and any external covering (Such as cladding, siding, bricks, stones, etc...) unless it's explicitly mentioned in the product description page.
We do not offer installation services, so the price does include installation. Before starting the installation, make sure that all preliminary/essential services (such as plumbing, electricity, etc....) are available.
