Single Family Home - 742 ft² - 2 Bedrooms Bungalow

Name: Single Family Home - 742 ft² - 2 Bedrooms Bungalow
Brand: Innovative Living Design
SKU: BANGALOW nO 4
Price: 31008.91 CAD
Availability: InStock

$31,008.91 CAD

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

Introduction:

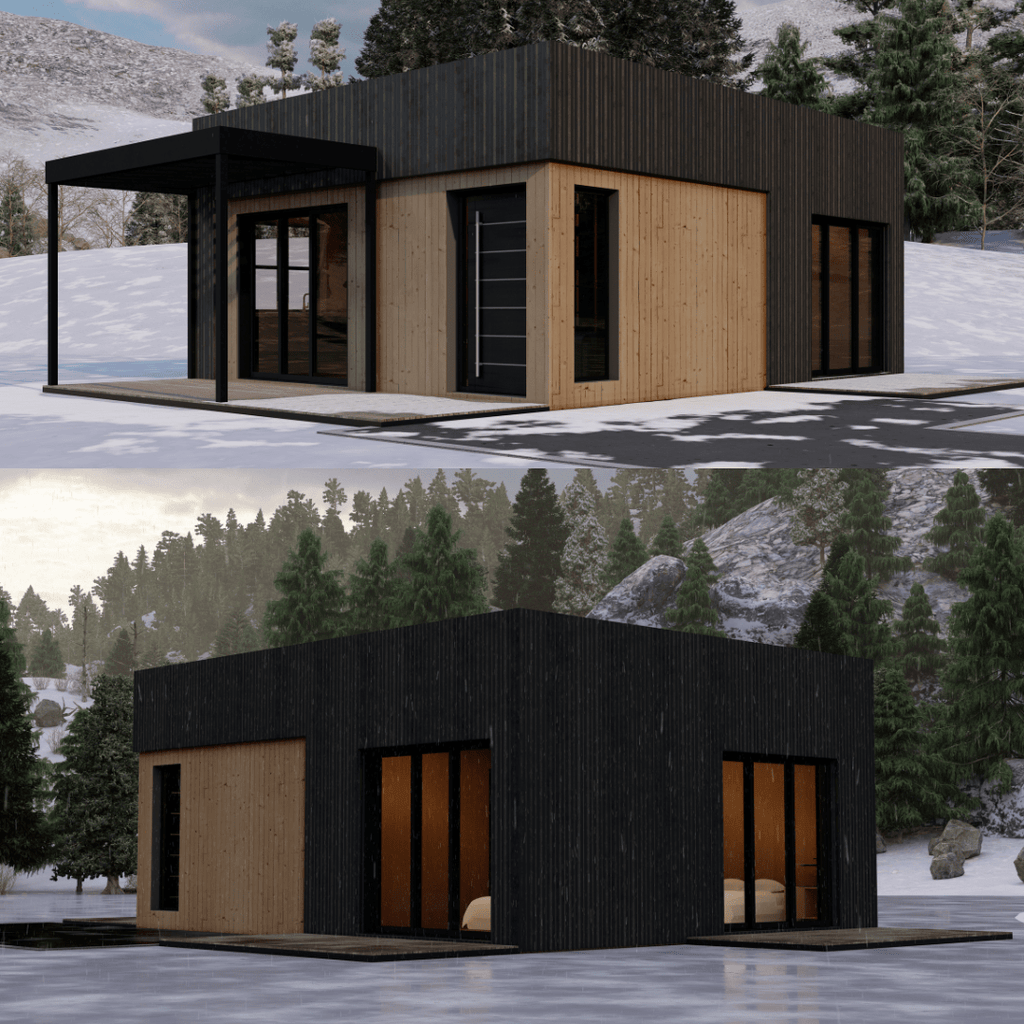

Eelegant and modern design bungalow, made from light gauge steel frame (LGSF). This design is ideal for a chalet near a Ski Resort or Golf Course. It can also be a retirement home or short term rental property.

Architectural Features:

This 742 ft² bungalow is the ideal retreat for the modern family seeking a cozy space in harmony with nature. Its minimalist design stands out for the harmonious integration of each environment, designed to offer comfort and functionality in every corner.

Upon entering, you will find a compact kitchen that connects naturally with a small living room, creating an intimate and versatile environment perfect for sharing family moments. The intelligent distribution continues with a full bathroom and two comfortable bedrooms, designed to ensure the privacy and rest of each member.

This model is the perfect option for those who wish to enjoy simplicity, modernity, and the warm embrace of nature in a unique family setting.

Specifications

Total Surface area (excluding architectural finishes) = 24 x 24 = 742 ft².
Height (between slab and bottom of roof rafters = 10 ft.
Roof Tilt Angle: Flat Roof
Building has to be installed on a slab on grade or a reinforced concrete wall.
Seismic Load as per Canadian Building Code 2015
Wind Load as per Canadian Building Code 2015 (Location the city of Montreal - Provicne of Quebec) - Please contact us for other Locations in Canada or the USA.
Snow Load as per Canadian Building Code 2015 (Location the city of Montreal - Provicne of Quebec) - Please contact us for other Locations in Canada or the USA.
Dead Load on Roof and Wall is distributed on Beams (15 PSF).
Roof Live Load is 21 PSF = 1 KPa.

Price Analysis

Buiding Price =41.77 CAD$/Ft² (449.4 CAD$/m²).

Required Quantity of Galvanized Steel = 6,297.67 Lb (91.27 Lb of Steel /m² of Usable Space) or (8.48 Lb/Ft² of Usable Space).

Technical Documents

This product is not eligible for either return or refund. Before manufacturing, we issue execution drawings which require prior approval by either the client or any of his representatives (Architect, Engineer, Project Manager, etc...).
Our price includes structural load analysis and optimization. We use Strap software, which supports Canadian and US buildings code. Shown Price is calculated using the assumptions (for snow, wind, dead, Live and Seismic Loads) listed in the product page. For locations where these assumptions are not applicable, we recommend you get in touch with our design team. We do optimize every design for its location and applicable state/province special code requirements. Strap Software Load report can be sent (upon client’s request) to the project’s structural engineer for approval).
Architectural detailing is done with Vertex BD software, which integrates all architectural requirements of the project. For special and custom designs, we require architectural plans in Revit or IFC format. Once all project architectural and structural requirements for LGSF have been finalized and approved by the client and/or his representatives, we proceed with the manufacturing and pre-assembly process.
All Panelized Walls and/roof rafters are subject to strict quality control procedure before shipping to the job site. Shown price is for light gauge steel frame (LGSF) only. Price Excludes shipping to site, Doors, Windows, Skylights or and any external covering (Such as cladding, siding, bricks, stones, etc...) unless it's explicitly mentioned in the product description page.
We do not offer installation services, so the price does include installation. Before starting the installation, make sure that all preliminary/essential services (such as plumbing, electricity, etc....) are available.
